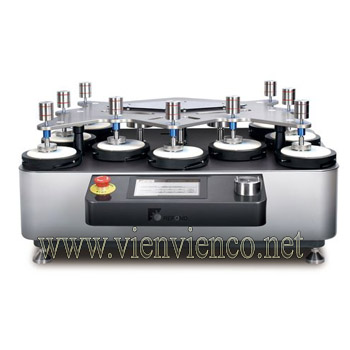

Features of Martindale abrasion & pilling tester RF3169N:
- The Martindale Abrasion & Pilling Tester RF3169N is used to determine the abrasion and pilling resistance of all types of textile fabrics. The samples are rubbed against the reference abrasive at a specific pressure and rotated continuously.
- The 7-inch color touchscreen is intuitive and easy to use.
- The RF3169N has single or multi-segment test modes.
- Super activity of the facility.
- Switch mode to a physical piece. No motion upgrades are required for abrasive assembly and sample testing.
- The Martindale Abrasion & Piling Tester has 4 rotation speeds to choose from.
- The Lissajous figure can be customized in the software control section.
- Two sizes of Lissajous are available for different standards and method testing.
- Sample support stand, balance made of stainless steel for more durability.
Features of Labowash RF6088W machine:
- The LaboWash washing machine is designed to test fabric stretch and fading.
- Labowash RF6088W washing machine is the first washing machine line developed by REFOND (China) based on American technology, which can ensure stability and accuracy for the testing and evaluation process.
- Additionally, Labowash Washers are designed to meet all relevant AATCC standard testing. At the same time, it also provides operating programming functions for laboratories.
Features of the RF3169N abrasion and hair testing machine:
- The Martindale abrasive loom was used in testing to determine the default pilling performance of all textile fabrics.
- The sample is abraded with a reference abrasive at the tool application and rotated continuously.
- Test scope: to determine the abrasion and packing ability of fabric, artificial leather, synthetic leather or film materials
The 45° Flammability Tester determines the burning characteristics of textiles under controlled conditions.
- 45° Flammability Tester determines the burning characteristics of textiles under controlled conditions.
- Stainless steel test chamber ensures the safety of test.
- Observe the whole testing process through the glass window, records the burning situation.
- Control the flame length by adjusting the flow meter.
- Control the flame applying time by internal timer.
- Flame automatic applying onto and moving away from the specimen.
- Time is automatically recorded from the beginning to the time of the yarn being burnt.
Character of Viewing Cabinet RF308N/1:
- Led light the specially designed viewing cabinet can be used for rating of snagging under the normal linght source in laboratory.
- Rating template: 2pcs
- Rating photographs: 9 photos (rated from grade 1 to 5)
- Power supply: AC230V, 50Hz/50Hz
- Dimension: 500(L) x 640(W) x 540(H) mm
- Weight: 30kg
Characteristics of air intake chamber RF1106:
- The gas combustion chamber is used to determine the color fastness of fabrics when exposed to Nitor Oxide gas derived from natural gas combustion.
- RF1106 was designed by Refond and is patent protected.
- Touch screen fully automatic control and testing.
- The microcirculation system increases the concentration of nitrogen oxide in the test chamber, shortens the test time and improves testing efficiency.
Character of ICI Mace Snagging Tester RF308:
- ICI Mace Snagging Tester is used to determine the tendency of fabrics to snag in normal wear with mace balls randomly on rotating cylinders rapidly.
- Complete with viewing cabinet and assessment photographs.
- Four specimens can be tested at the same time.
Application of Crockmeter RF3172 manually:
- The Crockmeter RF3172 manually is used to determine the colour fastness of textiles to dry or wet rubbing.
- A pinned acrylic sample holder ensures rapid sample mounting and repeatability of results.
Features of RF3506C/D stretch recovery tester:
- Stretch Recovery Tester (Static Method) is designed to determine the stretch recovery property of elastic material by static method. 2.0mm thickness stainless steel frame and base board, makes the tester firm and stable.
- Sample holder can be slid along the guide rail smoothly and can be fixed at any position of the rail.
Application of Frictional color fastness tester RF3178:
- The Frictional color fastness tester RF3178 (Crockmeter) simulates the AATCC1 standard 16, manual rotation is used to determine the color fastness of textiles to dry or wet friction, especially for printed fabrics.
- The Friction Color Fastness Tester is applicable to textiles made from all yarns in the form of yarns or fabrics, whether dyed, printed or colored and especially to prints from which the units come out. areas that cannot be tested with the AATCC 8 Standard Crockmeter.
Application of Steaming cylinder RF6112:- Steaming Cylinder is used to determine the shrinkage of unstressed fabric samples subjected to steaming in a closed chamber.
- RF6112 Steaming Cylinder，provided with stainless steel sample rack that can hold 4 specimens at the same test.
- The equipment has built-in steam generator which can generate 70g/min. steam automatically.
- A build-in timer for automatic timing control.
- The safety devices include door safety device, over-pressure protection device and over-temperature protection device.

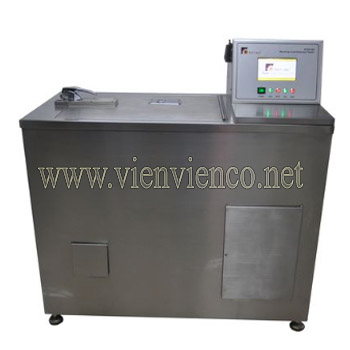

Applications and advantages of Washing color fastness tester RF6028E:- Washing color fastness tester RF6028E may use to determine the colorfastness test of washing, dyeing, drying clean and bleach detergent.
- Touchscreen operation, testing methods build in, easy operation.
- Automatic water inlet and draining, fully automated.
- Over temperature protection, safety door protection, lower water level protection, multiple protection for safe operation.
Applications and characteristics of Tear strength tester RF3259H (128N):- Tear strength tester RF3259H (128N) is used for the determination of tear strength by Elmendorf tearing method.
- Tear strength tester RF3259H uses high-tech sensors and PC software to make the test more intelligent.
- Test pendulums auto-recognition.
- Automatic testing range selection.
Application of Perspiration tester RF6008:- Perspiration Test RF6008 is used to test the colorfastness test of textile to water, perspiration and sea water.
- Loading weight set, perspiration tester and spring unit used high quality stainless steel 316 good resistance to corrosion.
- Good appearance and durability.
- Good flatness and parallelism of the pressure plates.

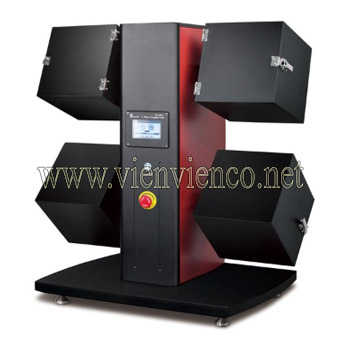

Character of ICI Pilling & Snagging Tester RF3184N:
- ICI Pilling & Snagging Tester RF3184N mounting the test specimens onto the PU tubes and put them into the pilling box which has cork liner mounted on the 6 sides, rotating at a specified speed and direction, simulates the normal wear of fabrics. When specified cycles of rotation has been finished, compare the tested specimens with reference photographs for assessment of pilling.
- Equipped with 4 pilling boxes

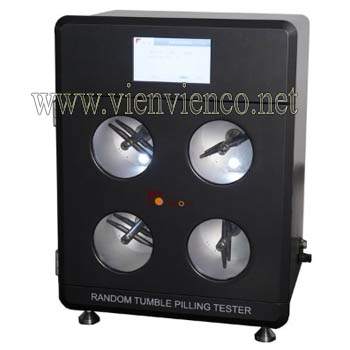

Character of random tumble pilling tester RF3194:
- Random Tumble Pilling Tester, putting the test fabrics and cotton sliver into the test chamber which is backed with cork liner, steel impellers rotates at a constant high speed, together with compressed air injection into the chamber, tumbling the test fabrics against cork liners, to determine the pilling and fuzzing characteristics of textile fabrics.
- Random tumble pilling tester RF3194 innovatively uses four chamber per machine. Flexible test configuration for varieties of testing requirements and boosts testing efficiency.
Character of random tumble pilling tester RF3191N:
- Random Tumble Pilling Tester, putting the test fabrics and cotton sliver into the test chamber which is backed with cork liner, steel impellers rotates at a constant high speed, together with compressed air injection into the chamber, tumbling the test fabrics against cork liners, to determine the pilling and fuzzing characteristics of textile fabrics.
- Random tumble pilling tester RF3191N innovatively uses one chamber per machine. Machines are designed to be stackable. Multiple testers can be stacked up to work together. Flexible test configuration for varieties of testing requirements and boosts testing efficiency.
Features of hydrostatic head tester RF4408PN:- Hydrostatic Head Tester RF4408PN, a specimen placed on a standard fixed size test area, the beneath water keeps on supplying a water pressure under specimen to determines the water penetration resistance of a fabric under constant water pressure.
- Hydrostatic Head Tester RF4408PN included different fixed size test head, touchscreen display and micro-computer which may automatically control compression process. The additional pneumatic sample press device helps to hold the sample firmly. Two-hand operate mode ensure safety operation.
Application of pneumatic bursting tester RF306AN:- Pneumatic bursting tester RF306AN is designed to determine the bursting strength and distension of specimens using pneumatic inflation method. Testing scope covers: woven, knitted and non-woven fabrics, papers and carton boards.
- Four testing modes: Beside the two traditional testing modes (Automatic Bursting Mode and Fixed Flow Rate Bursting Mode), additional two innovative testing modes were added to the RF306A, they are the Target Distension Bursting Mode and the Target Pressure Cyclic Mode. The four test methods can fulfill the requirements of production quality inspection and product development.
Application of Circular locus tester RF3158:- Circular locus tester RF3158 is designed to test the pilling property of fabric and fiber pure yarn and blended yarn, knitted, woven fabric. During the test, test specimen is pressed against abrasion material and moved in a circular trajectory for predefined cycles. After testing, pilling grade of the specimen is evaluated.
Character of Ozone test chamber RF1108:- Ozone test chamber RF1108 is used to determine the colorfastness of textiles when it is exposed to ozone in the atmosphere at room temperature.
- RF1108 is touchscreen controlled and the test is fully automated.
- The key component is using a famous US brand, the accuracy and durability is higher than other product.
Character of Drying rate tester-heated plate method RF4008HP:
- Drying Rate Tester-Heated Plate Method RF4008HP a fully automated testing machine, is based on the requirement of US AATCC201 testing standard, specially developed an automatic fabric drying rate tester.
- RF4008HP is a highly intelligent and fully automated equipment.
- It equipped with high precision components, with optimized mechanical design, ensures the measurement accuracy.
Features of electronic crockmeter RF3176N:
- Crockmeter determines the color fastness of textiles to dry or wet rubbing.
- Equipped with 16mm diameter test finger (Optional 19mm x 25.4mm rectangle test head)
- Electronic counter, can be set to max 9999.
- Testing load: 9N±0.1N
Features of Spray rating tester RF4418:- Spray Rating Tester determines the water repellent of specimen, pour 250ml of distilled water into the funnel of tester and allow it to spray from a nozzle down a distance 150mm to the specimen which already mounted on a 45 degree test hoop. Compare with spray test rating chart, evaluating the grade by water remained on the specimen suGTace when test ends.
- RF4418 Spray Rating Tester included Stand, funnel, spray test nozzle and specimen hoop, etc.
