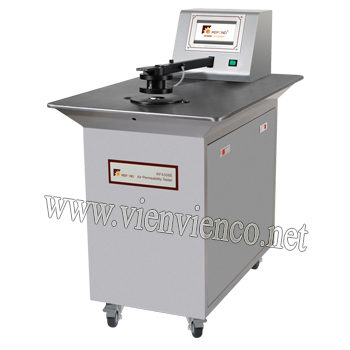

Features of the RF4308E Air Permeability Tester:
- The RF4308E Air Permeability Tester is designed to evaluate air permeability, making it particularly suitable for woven fabrics and sheet materials.
- It features an automated measurement design that reduces manual workload and minimizes testing errors.
- The system offers adjustable testing parameters and controlled operation, ensuring highly repeatable results.
- It features an intuitive display and simple operation, offering convenience for laboratory personnel.
- It supports data recording, storage, and processing, facilitating easy tracking of results after each test.
- With its robust construction and stable performance, the tester is ideal for use in QC departments, textile laboratories, and raw material quality inspections.
Specifications of Air permeability tester RF4308E:
- Air pressure range: 98-2500Pa
- Air flow rate: 1-40000mm³/s
- Accuracy: 3%
- Measurement Unit: mm/s, cfm, cm³/cm²/s, L/m²/s, L/dm²/min, m³/m²/min, m³/m²/h and dm³/s, L/dm²/s
- Test head: 20 cm²(Standard), 5cm², 25cm², 38cm², 50 cm², 100cm² (Optional)
- Specimen thickness: Maximum 8mm
- Calibration plate: standard set used for 20 cm² test head
- Automatic testing range selection
- PC software for easy accessment of testing data and report printing
- Traceable flow rete calibration by reference flow meters
- Overall dimension: 940(L)×590(W)×1010(H)mm
- Weight: approximate 99kg
Delivery method: Nationwide.
- Free in city. HCM
- In the station or express delivery if the customer in outside the province (customers pay shipping costs themselves)
Commitment to customers:
==> Supplying genuine goods (CO / CQ attached), 100% new (with the original belt)
==> Ensure customer's interests when buying products while in warranty, and maintenance for life.
=============== ///=============
