Taber
Specification of Taber CS-8 Grinding Wheel:
- Taber CS-8 Grinding Wheel, 1 pair / box, divided into left and right grinding wheels, respectively marked as " LEFT", "RIGHT", Packed in a special plastic box
Specification of Taber H-22 Grinding Wheel:- Taber H-22 Grinding Wheel, 1 pair / box, divided into left and right grinding wheels, respectively marked as " LEFT", "RIGHT", Packed in a special plastic box
Feature of Taber S-42 Sandpaper Strip Grinding Wheel:
An open coat sandpaper that is cut to 12.7mm x 160 mm strips and includes a pressure sensitive adhesive to attach the strip to the periphery of CS-0 (S-32) resilient wheels. The S-42 consists of a very fine aluminum oxide grit, graded as 180 ANSI-CAMI which has an average particle size that is approximately 78µm (0.00304 inches). The paper is an "A" weight which satisfies the paper grammage requirement of 70 - 100 g/m². To maintain the rate of abrasion, the sandpaper strips must be changed after a defined number of test cycles (typically 200 or 500). Applications include high pressure decorative laminates, wood flooring, plastics, furniture surfaces, paints and varnishes. Features of Taber S-11 sandpaper:

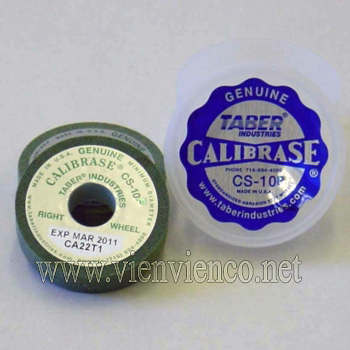

The usage time of Taber S-11 sandpaper is only 1 time of fine-tuning. Regardless of whether the disc has been used for 25 or 50 cycles, the regrind disc should be discarded. Re-grinding with a used disc may change the wear factor of the wheel faces and invalidate your test results. Feature of Taber CS-10P Grinding Wheel:
The abrasion rate is the same as the CS-10, but this wheel has been engineered so the wheel surface does not load when testing paper products. Intended for tests of short duration (e.g. 100 cycles), with refacing after every tenth test.

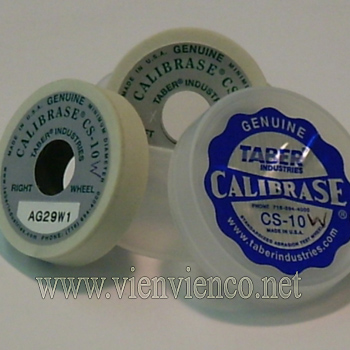

Feature of Taber CS-10W Grinding Wheel:
This wheel is the same as the CS-10 but white, to eliminate any color transfer from the wheel to the specimen.
Feature of Taber CS-5 Grinding Wheel:
This abrading wheel is manufactured from a densely compacted wool felt. Designed to be tested with 250 or 500-gram loads, its principal use is in testing textile fabrics when the service wear requires one fibrous material to rub against another.
Feature of Taber S-39 Grinding Wheel:
This wheel is used in conjunction with the Grit Feeder to conduct three-body abrasion tests, and includes a leather strip that has been adhered to the exterior of a brass hub.
Feature of Taber H-38 Grinding Wheel:
A non-resilient, vitrified abrading wheel comprised of fine abrasive particles that produces medium abrasive action. Designed to operate with 250 or 500 gram loads, the principal use of this wheel is to test woven and non-woven fabrics. Must be refaced using the Taber Wheel Refacer and multi-point diamond tool.
Feature of Taber Aluminum Wheel:
A solid aluminum wheel that can be used by itself or to apply an abrasive strip.
Features and parameters of Taber ST-11 grinding wheel:
Tabe ST-11 grinding wheel is used to resurface the wheel. The ST-11 grinding wheel is a 4" diameter x 1/4" thick vitrified product with a 1/4" center hole and has both sides manufactured to a 180 grit grit (usually specified as "good"). Original ST -11 refinished stones are duplex stones with one side 180 grit and the opposite side 80 grit Feature of Taber S-35 Grinding Wheel:
Manufactured out of tungsten carbide, the periphery of the S-35 consists of sharp helical teeth (1 mm pitch x 45° spiral pitch angle). The teeth combine both a cutting and tearing action, which provides a very severe abrasion. Intended for use only on resilient materials such as rubber, linoleum, and leather. S-35 wheels may be cleaned using a soft brass bristle brush. Feature of Taber S-33 Sandpaper Strip Grinding Wheel:
A closed coat sandpaper that is cut to 12.7mm x 160mm strips and includes a pressure sensitive adhesive to attach the strip to the periphery of CS-0 (S-32) resilient wheels. The S-33 consists of an extra fine aluminum oxide grit, graded as 360 FEPA which has an average particle size that is approximately 40.5µm (0.00159 inches). The paper is an "A" weight which satisfies the paper grammage requirement of 70 - 100 g/m². To maintain the rate of abrasion, the sandpaper strips must be changed after a defined number of test cycles (typically 200 or 500). Applications include vitreous and porcelain enamels, paints, metallic coatings, and furniture surfaces. Specifications of Taber CS-0 Grinding Wheel:
- Taber CS-0 Grinding Wheel, 1 pair / box, divided into left and right grinding wheels, respectively marked as " LEFT", "RIGHT", Packed in a special plastic box

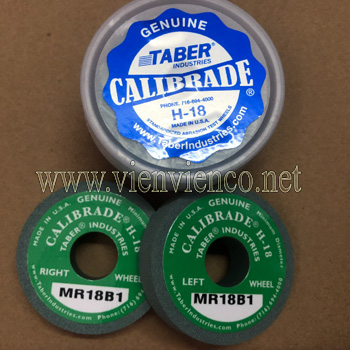

Specification of Taber H-18 Grinding Wheel:
- Taber H-18 Grinding Wheel, 1 pair / box, divided into left and right grinding wheels, respectively marked as " LEFT", "RIGHT", Packed in a special plastic box

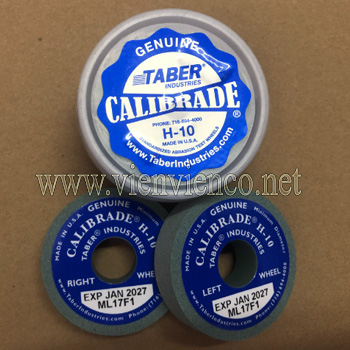

Specification of Taber H-10 Grinding Wheel:- Taber H-10 Grinding Wheel, 1 pair / box, divided into left and right grinding wheels, respectively marked as " LEFT", "RIGHT", Packed in a special plastic box

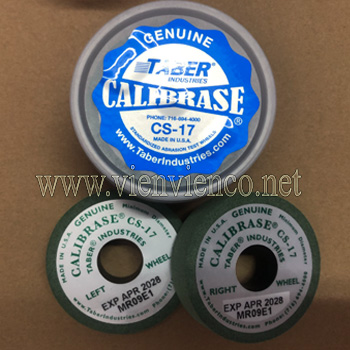

Specifications of Taber CS-17 Grinding Wheel:
- Taber CS-17 Grinding Wheel, 1 pair / box, divided into left and right grinding wheels, respectively marked as " LEFT", "RIGHT", Packed in a special plastic box

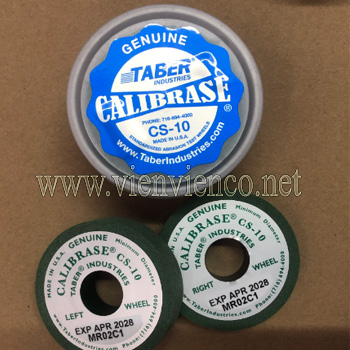

Specification of Taber CS-10 Grinding Wheel:
- Taber CS-10 Grinding Wheel, 1 pair / box, divided into left and right grinding wheels, respectively marked as " LEFT", "RIGHT", Packed in a special plastic box

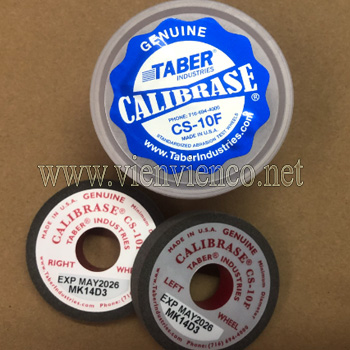

Specification of Taber CS-10F Grinding Wheel: - Taber CS-10F Grinding Wheel, 1 pair / box, divided into left and right grinding wheels, respectively marked as " LEFT", "RIGHT", Packed in a special plastic box
