  4. Falling-Pendulum Type Tearing Tester GT-C10B
Product

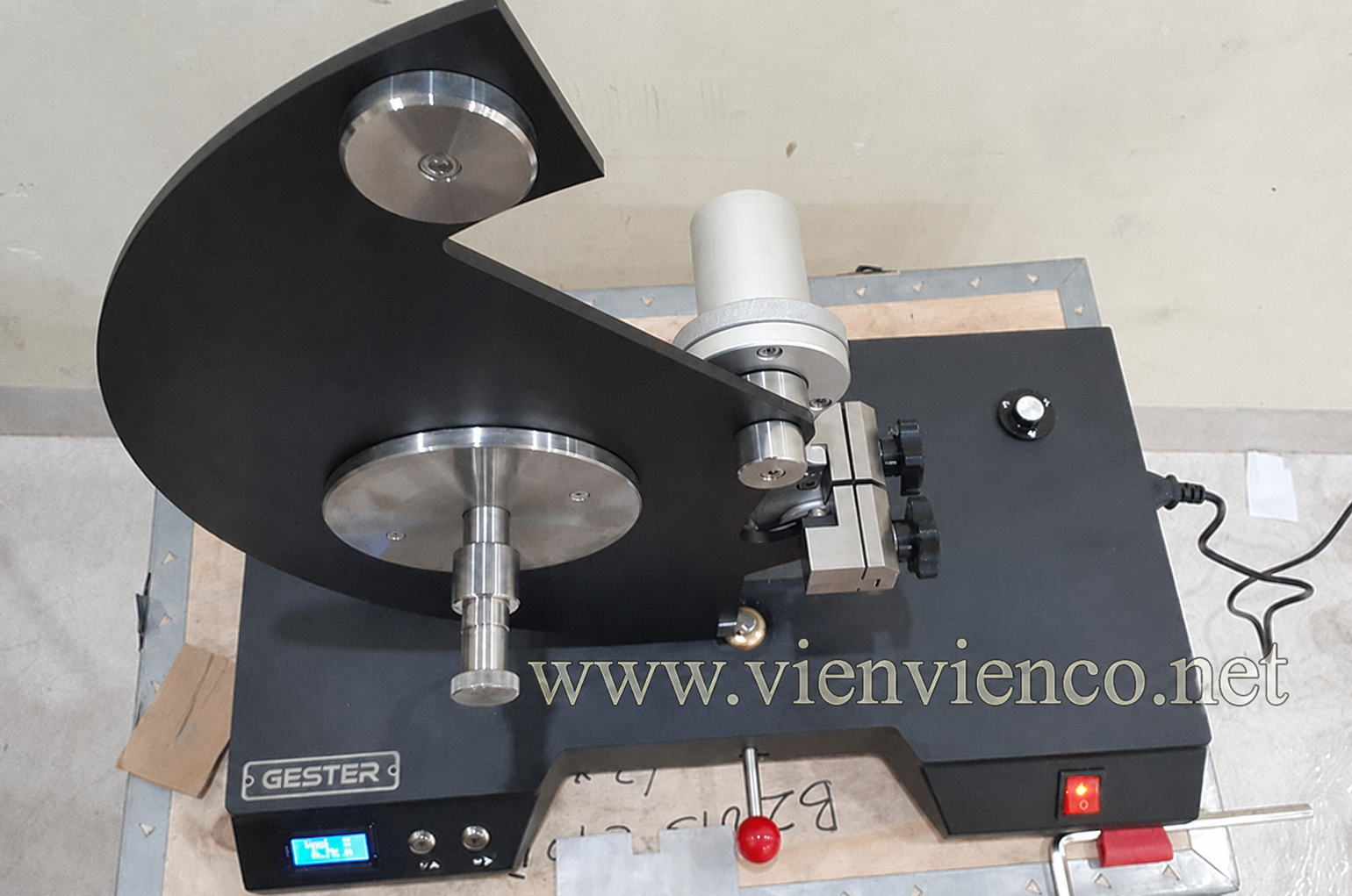

    Falling-Pendulum Type Tearing Tester GT-C10B

Falling-Pendulum Type Tearing Tester GT-C10B

  • Product Category: Testing equipment
  • Manufacturer: Gester
  • Code:

    GT-C10B

  • Price: Contact us
    • Standard: GB / T 3917.1, ASTM D 1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17, NF G07-149, etc.
Application and feature of tearing tester:
  1. This LCD display, simple to operate and easy to understand.
  2. Microprocessor can automatically detect and analyze data. It features precision test, reliable performance and simple operation.
  3. The instrument all can meet the related requirements of GB/T3917.1-2009 .
  4. Apply to the determination of tear strength of various woven fabrics and other materials, such aspaper, plastic sheets, film, electrical tape, sheet metal and so on.
Standards:
  1. Test for Textile: GB/T 3917.1, ASTM D 1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17, NF G07-149
  2. Test for Paper: GB/T 455, APPITA P 400, ASTM D 689, BS 4468, CSA D9, DIN 53128, EN 21974, ISO 1974, JIS P 8116, PAPTAC D9, SCAN P11, SNV 198482, TAPPI T414, UNI 6444
  3. Test for Plastic: GB/T 11999, ASTM D 1922, ISO 6383-2, JIS K 7128-2, NF T54 141
  4. Test for Non-woven fabrics: ASTM D 5734, WSP 100.1
Specifications of elmendorf tear tester:
ModelGT-C10B
Range of tearing force
0～16N (A)
0～32N (B)
0～64N (C)
Accuracy≤ ±1%F·S
Rip Length43mm
Power SupplyAC220V 50Hz 20W
Dimensions400×210×395mm
Weight30kg
Standards accessories
Pendulum B (16N) 1pc
Pendulum C (32N) 1pc
Sample Template 1pc
Power Line 1pc
Delivery method: Nationwide.
     - Free in city. HCM
     - In the station or express delivery if the customer in outside the province (customers pay shipping costs themselves)
Commitment to customers:
==> Supplying genuine goods (CO / CQ attached), 100% new (with the original belt)
==> Ensure customer's interests when buying products while in warranty, and maintenance for life.
=============== ///=============

Product Other

Price: Contact us

Features of Martindale abrasion & pilling tester RF3169N:
  1. The Martindale Abrasion & Pilling Tester RF3169N is used to determine the abrasion and pilling resistance of all types of textile fabrics. The samples are rubbed against the reference abrasive at a specific pressure and rotated continuously.
  2. The 7-inch color touchscreen is intuitive and easy to use.
  3. The RF3169N has single or multi-segment test modes.
  4. Super activity of the facility.
  5. Switch mode to a physical piece. No motion upgrades are required for abrasive assembly and sample testing.
  6. The Martindale Abrasion & Piling Tester has 4 rotation speeds to choose from.
  7. The Lissajous figure can be customized in the software control section.
  8. Two sizes of Lissajous are available for different standards and method testing.
  9. Sample support stand, balance made of stainless steel for more durability.

100% Genuine

Price: Contact us

Feature of SW-12G Color fastness tester to washing:
  1. SW-12G dry cleaning color fastness tester is used to test the color fastness to washing, dry cleaning and shrinkage of various fabrics, and also to test the color fastness to washing dyes.
  2. 7-inch multi-function color touch screen control;
  3. SW-12G automatically controls water level, automatically takes water, drains function and sets anti-dry burning function;
  4. High quality stainless steel painting process, beautiful and durable;

100% Genuine

Price: Contact us

Features of SmartShrink rate tester:
  1. The SmartShrink Shrink Rate Tester determines a variety of 5-second shrink rate test results for fabrics after washing, steaming and dry cleaning.
  2. SmartShrink photographed the fabric sample using the camera featured above, automatically measured the distance between marked points, and calculated the inspection results using the patented cupping inspection algorithm. by ChiuVention. The resulting test results will be shared with the IoT-connected SmarTexLab application installed on computers and smartphones.
  3. International brands and accredited testing organizations such as Anta, Adidas, Texwinca and ITS have widely used SmartShrink. Can connect to ERP or LIMS system. Test results can be uploaded directly to the laboratory's LIMS system or the factory's ERP.
  4. SmartShrink can help you manage data inspection conveniently and effectively.

      100% Genuine

      Price: Contact us

      Application and feature of Random Tumble Pilling Tester GT-C19B:
      1. Random Tumble Pilling Tester GT-C19B is used to determine the pilling and fuzzing characteristics of textile fabrics. Precision high-speed impeller for agitating the test specimens against cork lining for a pre-determined time controlled by a timer and audible alarm. Compressed air is also injected into the chamber to assist in the tumbling action. Laboratory standard compressed air supply required.
      2. Random pilling tester: intelligent interface to guide the user.
      3. Flexible system maximizes throughput and minimizes downtime.
      4. Interchangeable impellers for different global standards.
      5. Random Tumble Pilling Tester Stable propeller and rotation speed.

      100% Genuine

      Price: Contact us

      Feature of Perspiration Tester GT-D09:
      1. Perspiration Tester GT-D09 apply for testing perspiration resistance color fastness of all kinds of textile materials & dyeing, colorful textile and test for their perspiration resistance, waterproof, seawater resistance, saliva resistance, chlorine bleach resistance, etamsylate resistance and other performance.
      2. Perspiration tester: steel frame and heavy pouch made of 316L stainless steel, it can acid-bases, corrosion resistance for long time.
      3. Perspiration fastness tester provides ISO and the AATCC acrylic separator plates.
      4. Perspiration tester provides ISO and the AATCC standard pressing weights.
      5. The perspiration test request to use high accuracy drying oven.

      100% Genuine

      Price: Contact us

      Feature of  YG(B)401GC Martindale pilling and abrasion tester:
      1. YG(B)401GC Martindale pilling and abrasion tester used for the performance test of wear resistance, wear resistance and appearance change (pilling) of textiles and film materials (Martindale method).
      2. Three test modes, plus and minus two counting modes.
      3. No turning guide design, loading without moving.
      4. YG(B)401GC Martindale pilling and abrasion tester PLC modular controlled, 7-inch color touch screen, Bilingual menu operation.

      100% Genuine

      Price: Contact us

      Feature of YG(B)032Q electronic pneumatic bursting strength tester:
      1. YG(B)032Q electronic pneumatic bursting strength tester used for pneumatic test of bursting strength and bursting expansion of all kinds of fabrics, including knitted fabrics, woven fabrics, nonwoven fabrics, laminated fabrics and other fabrics, under standard conditions or wet conditions.
      2. Microcomputer control, automatic burst test, automatic correction, automatic data processing, experimental report form output results.
      3. Aerodynamic, high cleanliness.
      4. YG(B)032Q electronic pneumatic bursting strength tester has color touch screen interface, Chinese and English menu operation, support online communication.
      5. Bursting pressure up to 1.2mpa
      6. The maximum expansion degree of bursting can reach 70mm.
      7. Strengthen the lighting system on the test surface.
      8. The main aerodynamic power clamping sample system.
      9. YG(B)032Q electronic pneumatic bursting strength tester avariety of test area is optional, and easy to switch.
      10. Chinese and English multiple unit conversion.
      11. Reliable safety protection design for preventing hand clamps.

      100% Genuine

      Price: Contact us

      Feature of  YG(B)401G Martindale pilling and abrasion tester:
      1. YG(B)401G Martindale pilling and abrasion tester is used for the performance test of wear resistance, wear-resistance and appearance change (pilling) of textiles and film materials (Martindale method).
      2. Three test modes, plus and minus two counting modes.
      3. YG(B)401G Martindale pilling and abrasion tester no-turn guide plate design, no need to move the sample.
      4. PLC modular control, 7-inch color touch screen, Bilingual menu operation.

      100% Genuine

      Price: Contact us

      Feature of YG(B)026SH Electronic fabric strength testing machine:
      1. YG(B)026SH tensile testing machine is used for all types of textile materials with tensile strength, tearing, fixed elongation, fixed load, elasticity, slippage, peeling and other mechanical tests. Widely used for products such as: fabric, rubber, plastic, leather, paper, packaging, metal, electrical materials,...
      2. The load-bearing column frame configuration has high rigidity and precise ball screw movement.
      3. Automatic distance positioning function.
      4. AC servo motor, high resolution digital controller.
      5. Test module design and data management.
      6. YG(B)026SH tensile force tester has a thermal printer, output test results quickly.

      100% Genuine
