Characteristics of the hardness tester when equipped with GT-KA16 shoes:

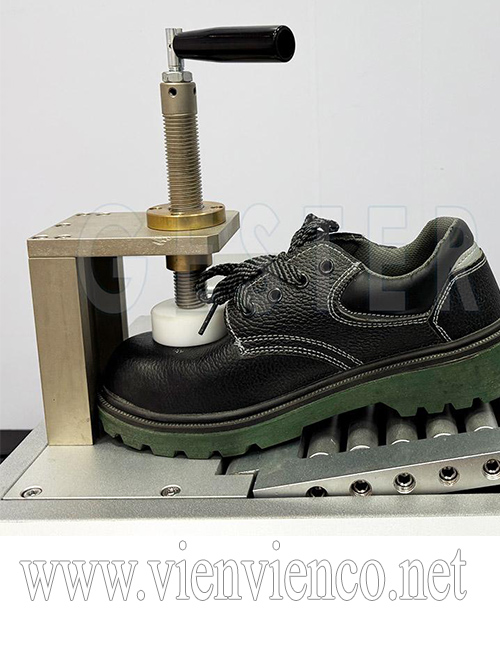

- Shoe durometer GT-KA16 is used to measure the deliverability of a whole pair of shoes (French shoes size 39, 42 and English shoes size 6, size 8).Clamp the soles first (confirm on 1) / 3 please shoe hand, located on the shaft position), after the motor starts, drive to the mesh net, to make the board drive shaft rotate at a speed of 100mm/min to increase the intensity of 30N to the shoe to do the lesson check.
- LCD control, easy operation and digital result display.
- The page is decoded along the vertical axis, and the tilt angle reaction speed of the rotating table displays the information value through the screen with an accuracy of 0.1°.
Specifications of shoes bending stiffness tester GT-KA16:
- Model: GT-KA16
- Capacity: 200 N
- Bending speed: 100mm/min (adjustable)
- Sample size French standard: Size 39, 42 ; British standard : Size 6, 8
- Test load: 30 N
- Bending position: 1/3 of shoes
- Angle resolution: 0.1°
- Force resolution: 1/50000
- Measurement method: Fixed fore to display angle, Fixed angle to display force
- Power: AC 220V 50/60HZ 3A
- Dimension (W×D×H): 50×45×53 cm
- Weights: 40kg
