Features of Gester GT-KB46 Steel Shank Fatigue Resistance
Tester:

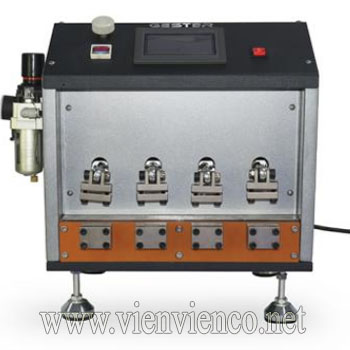

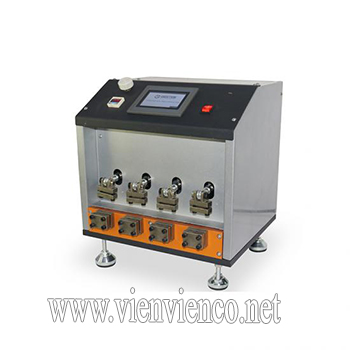

- The Gester GT-KB46 Steel Shank Fatigue Resistance Tester is
designed to determine the fatigue resistance and flexural durability of steel
shanks used in footwear.
- The GT-KB46 Flexing Resistance Tester simulates repeated
bending under actual usage conditions to evaluate the quality and service life
of footwear steel shanks.
- The GT-KB46 model is specially designed for fatigue testing
of shoe steel shanks in accordance with international footwear testing
standards.
- Its robust specimen clamping system combined with a precise
loading mechanism generates stable flexing cycles and ensures highly repeatable
test results.
- The tester is equipped with four testing stations, allowing
multiple specimens to be tested simultaneously and improving testing
efficiency.
- The PLC control system with a touch screen interface enables
easy parameter setting and real-time monitoring of the testing process.
- Its sturdy construction and stable operation make it
suitable for laboratories, quality inspection centers, and QA/QC departments in
footwear manufacturing facilities.
- The equipment helps manufacturers evaluate steel shank
quality, improve product durability, and comply with international testing
requirements.
Technical Specifications of Gester GT-KB46 Steel Shank
Fatigue Resistance Tester:
- Model: GT-KB46
- Number of Test Stations: 4 Stations
- Test Speed: 4 Cycles/Second
- Height of Hardened Steel Plane on Lower Clamp: 32 ± 2 mm
- Distance Between Connecting Bar of Upper and Lower Clamps:
70 ± 2 mm
- Cyclic Test Load: 49 ± 2 N
- Clamping Torque: 4900 N.mm ± 50 N.mm
- Control System: PLC with Touch Screen
- Power Supply: AC 220V, 50/60Hz
- Dimensions (L × W × H): 500 × 450 × 800 mm
- Machine Weight: 75 kg
Delivery method: Nationwide.
- Free in city. HCM
- In the station or express delivery if the customer in outside the province (customers pay shipping costs themselves)
Commitment to customers:
==> Supplying genuine goods (CO / CQ attached), 100% new (with the original belt)
==> Ensure customer's interests when buying products while in warranty, and maintenance for life.
=============== ///=============
