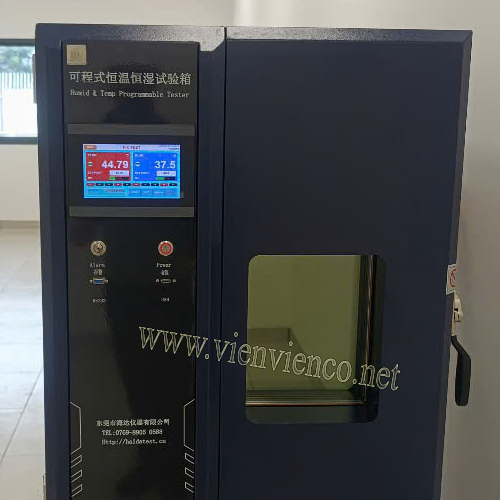

Constant Temperature and Humidity Test Chamber HD-E702

• Product Category: Temperature Humidity Chamber
• Manufacturer: HAIDA
• Code:

  HD-E702

• Price: Contact us
• ORDER
• Tweet
• • Warranty 12 months
  • Delivery
  • Caring thoughtful
  • 24/7 support
  • Standard:

• Product Information

Feature of Constant Temperature and Humidity Test Chamber HD-E702:

1. Constant Temperature and Humidity Test Chamber HD-E702 can quickly and accurately simulate the different indicators of constant temperature and humidity climate. The power of the chamber can be customized.
2. The environmental test chamber HD-E702, also known as the constant temperature and humidity chamber, is designed to test the performance of materials under various environmental test equipment and various material retention tests, cooling tests, heating tests, wet tests and drying tests... It is suitable for product quality testing purposes such as electronics, electrical, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace, etc.
3. Equipped with high-precision sensors and an advanced PID control system, our chamber ensures exact temperature and humidity regulation, creating a stable testing environment.
4. Provides a broad testing range to meet various product testing needs, from low temperature and high humidity to high temperature and dry conditions.
5. Features robust cooling and heating systems that allow for quick temperature adjustments, significantly reducing test time and enhancing overall testing efficiency.
6. HD-E702 with the user-friendly touchscreen interface and remote control capabilities make operation effortless, allowing for real-time monitoring and adjustments to improve the user experience.

Specifications of Constant Temperature and Humidity Test Chamber HD-E702:

Model	D-E702-100	HD-E702-150	HD-E702-225	HD-E702-408	HD-E702-1000
Kích thước bên trong(Rộng*Cao*Sâu)	400*500*500mm	500*500*600mm	500*750*600mm	600*850*800mm	1000*1000*800mm
Kích thước bên ngoài (Loại sus) (W*H*D)	950*1400*1100	1100*1500*1100	1100*1670*1200	1200*1770*1400	1550*2100*1400
Kích thước bên ngoài (Loại sơn) (W*H*D)	700*1400*1100	800*1500*1100	800*1670*1200	900*1770*1400	1550*2100*1400

1. Temp.& Humi. Adjust Way: Balanced temperature and humidity control (BTHC) PID intelligent adjustment
2. Temperature Range: -20℃,-40℃,-70℃~150℃
3. Temperature Accuracy: 0,01℃
4. Temperature Tolerance: ≤±1.0℃hoặc±2.0℃
5. Temperature Fluctuations: ≤±0.5℃ （without load and temperature stable）
6. Temperature Uniformity:  ≤1.5℃ （without loading,50mm≤SENSOR
7. Humidity Range: 20%-98%RH
8. Humidity Accuracy: 0.1%RH
9. Humidity Tolerance: 1 、 ≥75%RH: ≤ ± 3%RH ；2 、 ≤75%RH : ≤±6%RH
10. Humidity  Fluctuations: ≤±2,5%RH
11. Heating Rate: 3℃/min in average
12. Cooling Rate: 1℃/min in average
13. Cooling Method: Single stage compression, two stage compression
14. Refrigerator: Hermertically Sealed France Tecumseh Compressor or Semi-hermetic BOcK Compressor
15. Cooling Method: Air-cooled
16. Operation Panel: Programmable LCD Touch Screen
17. Running Mode: Fix Running, Pattern Running
18. Program Memory Capacity: 120 Group Programmable, Max 100 Section Each
19. Output: Rs-232 (USB, Optional)
20. Water Supply: Circulating Water
21. Water Tank Capacity: Chamber Internal Capacity < 800L: 25L X 1pc
22. Water Tank Capacity: Chamber Internal Capacity > 800L: 25LX 2pc
