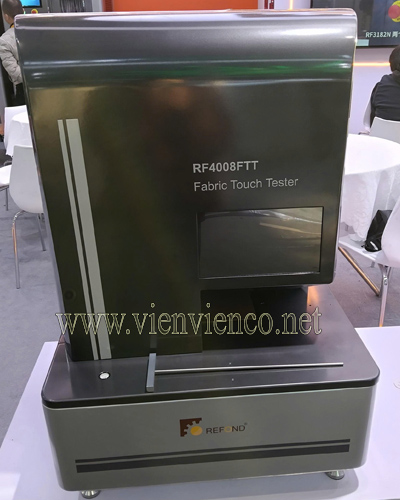

Functions of the RF4008FTT Fabric Touch Tester:
-
The RF4008FTT Fabric Touch Tester is designed to evaluate the tactile sensation of fabrics in an objective and quantitative manner, instead of relying solely on subjective human judgment.
-
It assesses the hand feel of fabrics through physical parameters related to human perception, such as softness–stiffness, smoothness–roughness, and warm–cool sensation upon contact.
-
It is suitable for various types of fabrics including knitted, woven, and nonwoven materials, especially for applications evaluating skin-contact comfort.
-
The device allows multiple parameters to be measured simultaneously in a single test, helping save time while ensuring high accuracy. It effectively supports quality control (QC), research & development (R&D), and material comparison.
Technical Specifications of the RF4008FTT Fabric Touch Tester:
- Temperature Difference Between Upper and Lower Test Heads：5-20 ℃ settable
- Descending and Ascending Speed of Upper Test Head：0.5-2.5 mm/s
- Target Value of Compression Pressure：30-70 cN/cm2
- Heatflux Range：0 – 2000 W/m2
- Resolution of Heatflux：0.1 W/m2
- Resolution of Temperature：0.01 ℃
- Resolution of Roughness：0.001 mm
- Resolution of Thickness：0.001 mm
- Resolution of Compression Pressure：0.01 cN/cm
- Resolution of Friction Force：0.1 cN
- Resolution of Bending Force：0.1 cN
- Max. Specimen Thickness：6mm
- Surface Module Roller Weight：(143±2)gf
- Specimen Size：L-Shape，110mm×310mm×310mm
- Test Plate Size：120mm×120mm
- Dimension：600mm×540mm×880mm（L×W×H）
- Power：220VAC±10% 50Hz 200W
- Weight：Approx. 90kg
