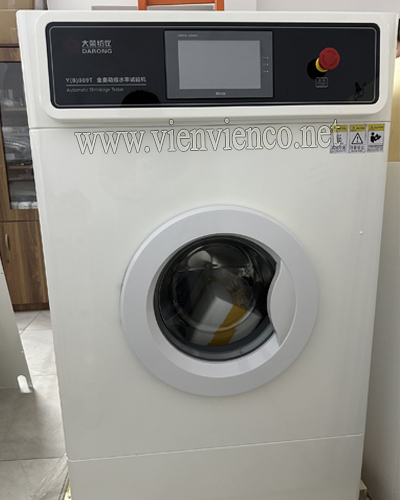

Feature of Y(B)089T Automatic Shrinkage Testing Machine:
- Y(B)089T Automatic Shrinkage Testing Machine is a professional laboratory washing machine designed to evaluate the dimensional stability and shrinkage performance of textiles after washing. It is widely used in textile testing laboratories, garment manufacturers.
- The machine helps determine fabric shrinkage, growth, and dimensional changes after repeated washing cycles.
- Multiple pre-installed washing procedures allow users to quickly perform tests according to international standards. Custom program storage is also available for special testing requirements.
- Y(B)089T equipped with an advanced stepless variable-speed motor for smooth operation, precise speed control, and efficient dehydration performance.
- The suspended drum design minimizes vibration and noise, ensuring stable operation without the need for floor fixation.
- Y(B)089T powered by a 32-bit industrial-grade microcontroller for accurate process control, reliable performance, and long-term operational stability.
- User-friendly LCD interface provides real-time monitoring of washing parameters and easy program selection.
- High-precision water level detection and temperature control systems ensure consistent and repeatable test results.
089T.jpg)
Specifications of Y(B)089T Automatic Shrinkage Testing Machine:
1. Category: A type washing machine front door feeding, horizontal drum type
2. Rated charging capacity: 5kg
3. Inner drum diameter :(520±1) mm
4. The inner drum depth :(315±1) mm
5. Lifting film
- Number: 3 tablets
- Height :(53±1) mm
- Length: extends to the entire depth of the inner drum
- Distance: 1200
6. Outer cylinder diameter :(554±1) mm
7. Rotating action:
- Normal rotation time interval :(12±0.1) s
- Normal stop time interval :(3±0.1) s
- Ease the rotation time interval :(8±0.1) s
- Relaxation stop time interval :(7±0.1) s
- Soft rotation time interval :(3±0.1) s
- Soft stop time interval :(12±0.1) s
8. Speed: digital setting, up to 800RPM
- Procedure: wash (52±1) RPM
- Low speed dehydration (500±20) RPM
- High speed dehydration (800±20) RPM
9. Water Supply system:
- Water supply flow (20±2) L/min (water supply pressure at the inlet should be higher than 150KP)
- Water level detection 2 levels 100mm and 130mm(tolerance ≤3mm)
- Drainage speed > 30L/min
10. Temperature setting range: 99℃±1℃, resolution 0.1℃
11. Washing procedures: 23 sets of automatic washing procedures; Another set of archive self - editing washing process; Manual single control flow
12. Heating power: 5.4KW
13. Power supply: AC220V±10% 50Hz 6.5KW
14. Overall size :(750×650×1190)mm (L×W×H)
15. Weight: 130kg
